Features

High head, High capacity design with better efficiency and performance. All pumps are made of superior quality rolled stainless steel material which has better properties than cast material.
Liquid contact parts have smoother surface which gives less frictional losses and more efficiency. Front Openable, simple and easy design ensures quick maintenance and cleaning and lower down time.
Superior surface finish also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterile / hygienic application

Types of Centrifugal Pumps

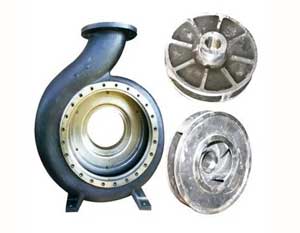

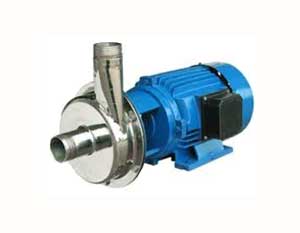

Centrifugal pumps are available in Horizontal / Vertical configurations with single stage / multi stage options. Various standard sizes from ½” to 6” are available with different material options like SS 304, SS 316, SS 316L etc. depending upon application requirements. Pumps can be available with Closed impeller or Semi Open impeller.

Operating Principle

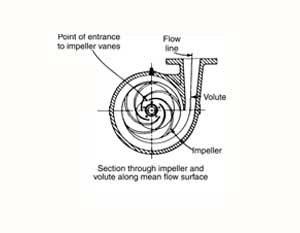

Primary operating principle of centrifugal pump is conversion of mechanical energy into kinetic energy by rotating impeller. The liquid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward into a diffuser or volute chamber (casing), from where it exits into the downstream piping system.

Applications

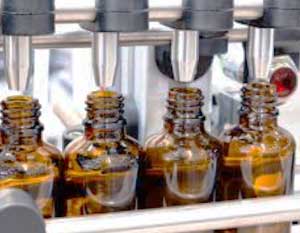

CFP series pumps can be used for loading, unloading, transfer and processing of varioius liquids such as

• Water (Pure, Demineralised, Deionised, RO etc.)
• Beverages (Juices, Milk, Wine, Beer etc.)
• Pharmaceutical liquids
• Chemicals (Acids, Solvents, Alkalis etc.)
• Color dyes, Pigments, Textile sizing, Dyeing & finishing systems
• Milk, Butter, Oils (Vegetable oils, Lubricating oils, Hydraulic oils etc.)
• Electroplating Chemicals, Effluent liquids, Acid washing etc
• Petrol, Kerosene, Diesel and other petroleum liquids
